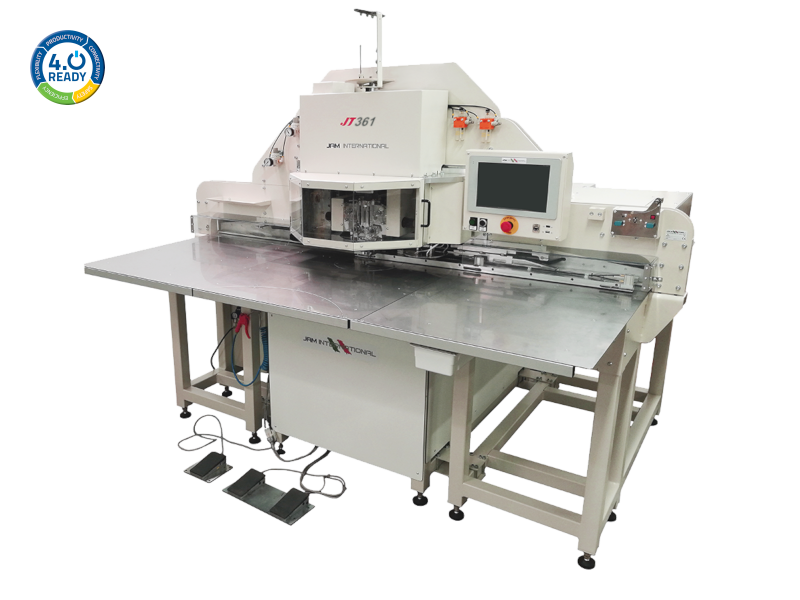

JT361M
Automatic programmable sewing machine, rotating sewing head, single needle bar, lockstitchJT361M is an automatic pattern machine with programmable area.
This machine is equipped with:

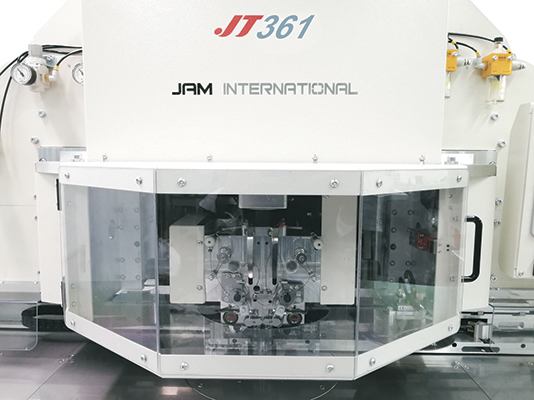

• Single needle bar lockstitch sewing head
•720° rotating sewing head for best stitching quality
• Sewing area 1000×600 mm. XY axes powered by 2000W latest generation brushless motors and recirculating ball screws
• Intuitive 12” touch screen user interface
• Auto ejector clamp device to reduce the loading and stacking time
• Innovative presser foot, which allows the use of economical and practical plastic jigs
• Thread catcher clamp, essential device to make high-quality leather goods items where high precision and cleanness is required after each automatic trimming
Optional devices

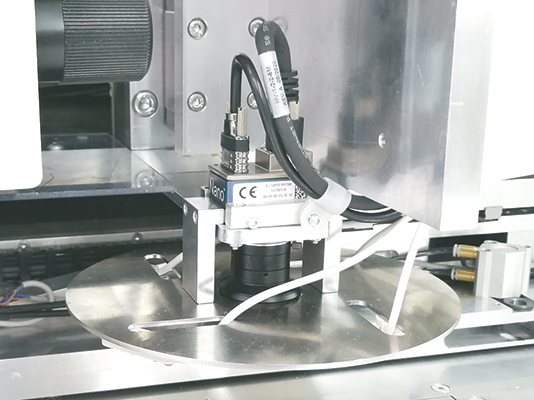

• Camera to adjust the sewing program to the geometric features of the material
• PC Windows software to create and edit sewing programs
Specifications
| Type of sewing machine | JAM single needle lockstitch |
| Needles distance | Standard 6.4 mm Optional 4.8/6.0/8.0/10.0 mm |
| Seam control unit |
12” touch screen |
| Feeding system |
Synchronized intermittent feed |
| Sewing area | 1000×600 mm |
| Sewing speed | 2500 rpm |
| Stitch lenght | 0.05 – 12.70 mm |
| Power source | 380 Vac (3P+N+E) – 50/60 Hz |
| Electric consumption | Max 6 KW |
| Air source | 6 bar |
| Consumption air | Max 1.5 l/cycle |
| Dimension | 239 x 241 x 210 (H) cm |
Machine documentation
Contact us for more info
