JT318M

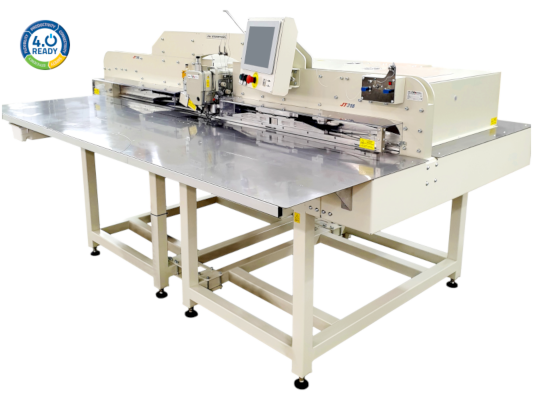

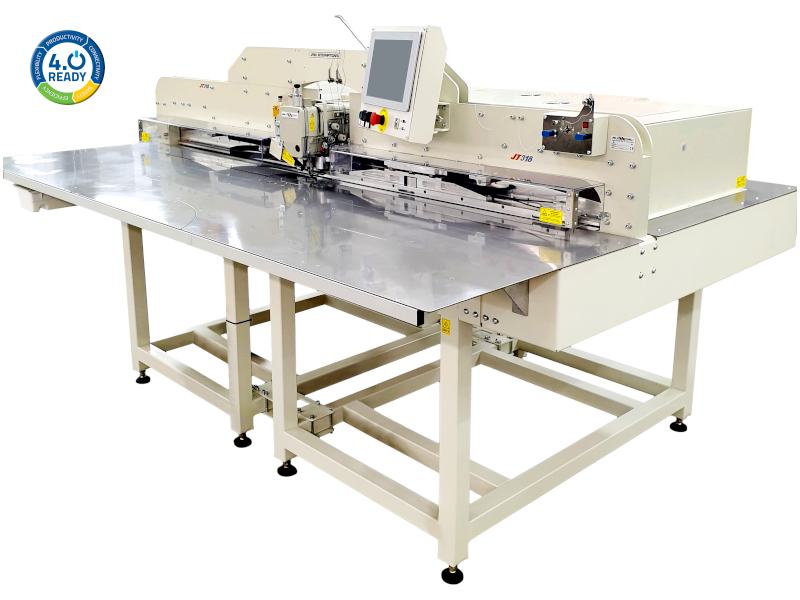

Automatic programmable two needles lock stitch pattern sewing machine for footwear and leather goods

JT318M is an automatic pattern machine with programmable area.

This machine is equipped with:

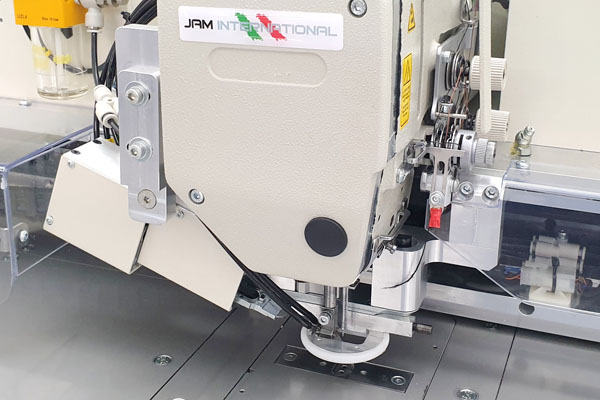

• Two needles lock stitch sewing head, with vertical-axis large hook and powered by two 750W motors.
• Sewing area 1000×600 mm. XY axes powered by 2000W latest generation brushless motors and recirculating ball screws.

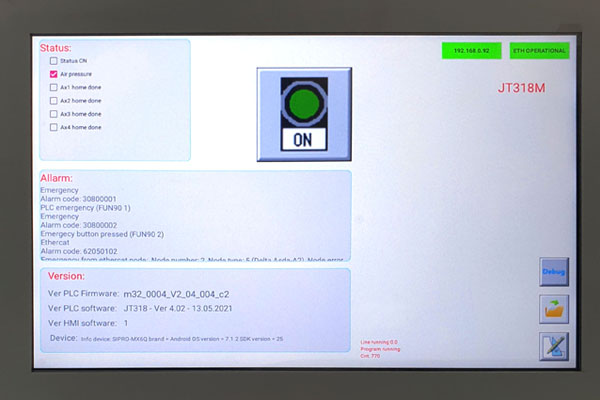

• Intuitive 12” touch screen user interface.
• Auto ejector clamp device to reduce the loading and stacking time.

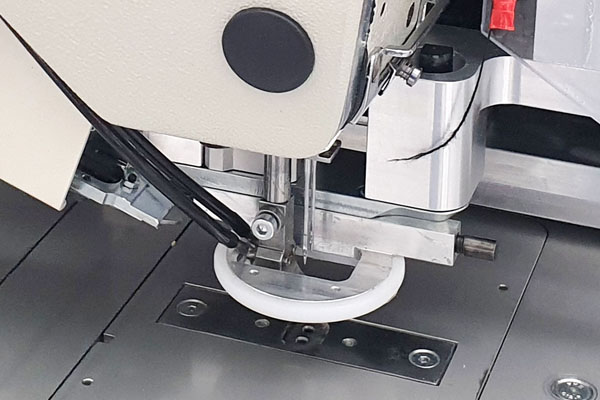

• Innovative presser foot, which allows the use of economical and practical plastic jigs.
• Thread catcher clamp, essential device to make high-quality leather goods items where high precision and cleanness is required after each automatic trimming.

Thanks to this high technology mix, the stitch quality of our machines has been approved by the main European leather goods brands.

Specifications
Type of sewing machine Two needles lock stitch
Needles distance Standard 6.4 mm
Optional 4.8/6.0/8.0/10.0 mm
Seam control unit 12” touch screen
Feeding system Synchronized intermittent feed
Sewing area 1000×600 mm
Sewing speed 2500 rpm
Stitch lenght 0.05 – 12.70 mm
Power source
Electric consumption
380 Vac (3P+N+E) – 50/60 Hz
Max 5 KW
Air source
Air consumption
6 bar
Max 1.5 l/cycle
Dimension and weight 244 x 235 x 195(H) cm
830 kg





Machine documentation
Contact us for more info
